Máquina de perfuração e tapping Industrial de 15 polegadas de 16 mm de 15 polegadas| Product Specifications | |

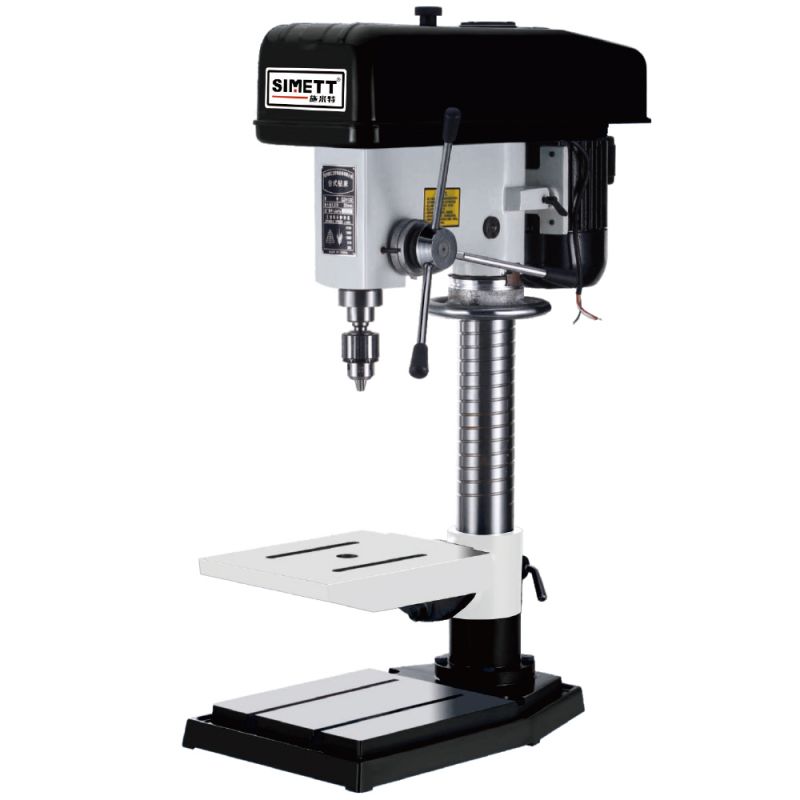

| Product Name: | Industrial 19-inch Benchtop Light Drill Press 32mm |
| Model Number: | Z4132 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ32mm |
| Motor Power: | 1100W |
| Chuck Capacity: | 32mm |
| Spindle Travel: | 85mm |
| Spindle Speed Series: | 5 |
| Spindle Speed Range (In 50/ 60HZ): | 365-3150 RPM |
| Spindle Taper: | B18/MT3 |
| Max. Distance from Spindle Axis to Surface of Column: | 240mm |
| Max. Distance from Spindle End to Surface of Table: | 480mm |
| Max. Distance from Spindle End to Surface of Base: | 690mm |
| Swing: | 480mm |
| Table Size: | 315x270mm |
| Base Size: | 555*355mm |
| Column Diameter: | Φ85mm |
| Machine Height: | 900mm |
| Net / Gross Weight: | 90KG |
| Packing Size: |
|
*Cast iron handwheel;
*Fine grinding table and bottom plate;
The surface of the box body and the bottom plate of the worktable are finely machined, smooth and beautiful without particles.
*Mainly applicable to repair industry, household, special drilling angle iron,channel steel, stainless steel pipe drilling, opening, bead processing.
